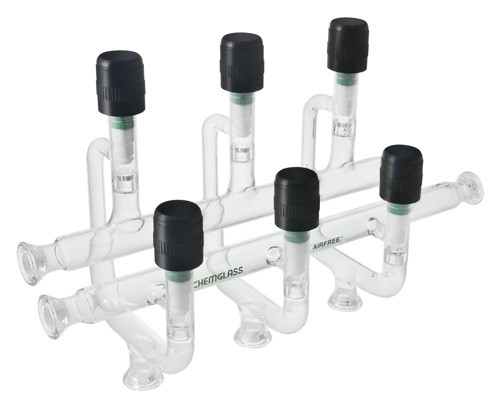

  • A photograph of a af-0062 dual line vacuum manifold, souza design, complete with 3 ports.

Dual Line Vacuum Manifold, Souza Design, Complete w. 3, 4, or 5 ports

Item #: AF-0062
Quantity:
$2,205.00

Normal Availability: 1-3 business days

Product Description

This double bank manifold features valves that are oriented in a vertical position, permitting the user an unobstructed view of whether the valve is in the open or closed position. CG-961-02 PTFE Chem-Cap® valves and O-ring seals ensure grease-free operation. The main ports are spaced 100 mm center to center.  All connection ports are 15mm I.D. O-ring connections which can connect to standard taper components, serrated hose connections or 3/8 in Cajon™ fittings with separately available adapters.  This system is available in 3, 4, and 5-port configurations.

The manifold only options include the required number of 0-8 mm valve plugs.  The complete packages described below contain everything you need except a vacuum pump, flexible tubing and a Dewar flask to get your system operational.  The pricing already reflects a 10% savings over purchasing the package items individually.

Complete Packages Include Each of The Following AF-0062-80 AF-0062-81 AF-0062-82
AF-0062-0X Manifold with PTFE plugs.  # of ports as shown: 3 4 5
AF-0200-01 vacuum trap complete with body O-ring and horseshoe clamp 1 1 1
AF-0070-03 #15 O-ring to 3/4" tubulation (for connecting to vacuum source) 1 1 1
AF-0210-01 #15 O-ring stoppers 3 3 3
CG-150-05 stainless steel clamps for line and trap 8 9 10
AF-0072-01 connecting inlet adapter (for inert/reaction gas supply) 1 1 1
AF-0513-20 bubbler 1 1 1
CG-4022-02 T-shaped tubing connector (For inert gas/bubbler supply line) 1 1 1
AF-0070-01 #15 O-ring to 3/8" tubulation (to adapt ports to vacuum tubing) 3 4 5
CG-305-116 12-pack of spare #116 Viton O-rings 1 1 1

Other Details

Manufactured in: USA
